The Medical Gas Manifold shall be an M Line series. This manifold shall comply with the latest edition of CE Mark.
The Manifold shall be a , fully automatic type and shall provide an uninterrupted supply of gas to the pipe line at a constant pressure. The manifold shall permit automatic switch over for the "in use" (Primary) Bank of cylinders to the "Reserve" (Secondary) Bank of cylinders.

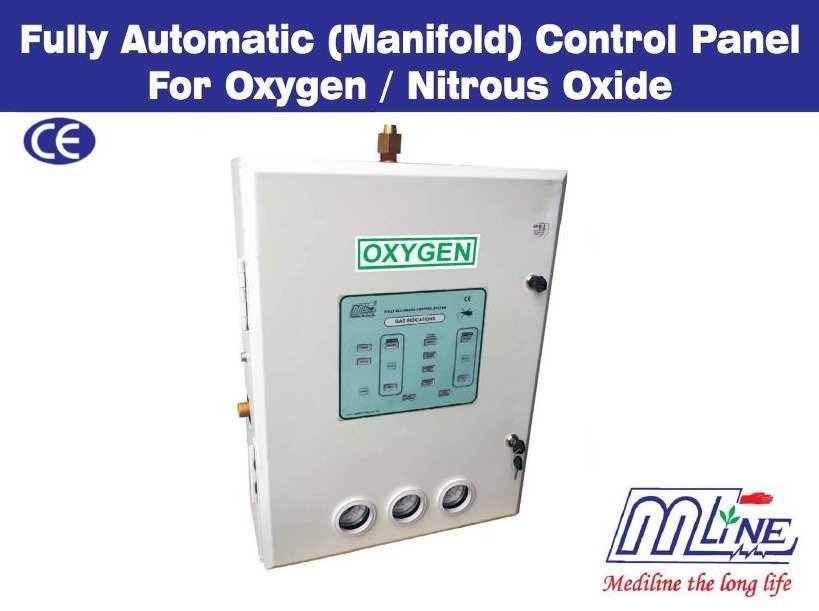

The manifold shall have a MICROPROCESSOR based display panel. The unit will be compact measuring 22"x 28" wide x 6" deep. Fully automated duly tested for hours before delivery.

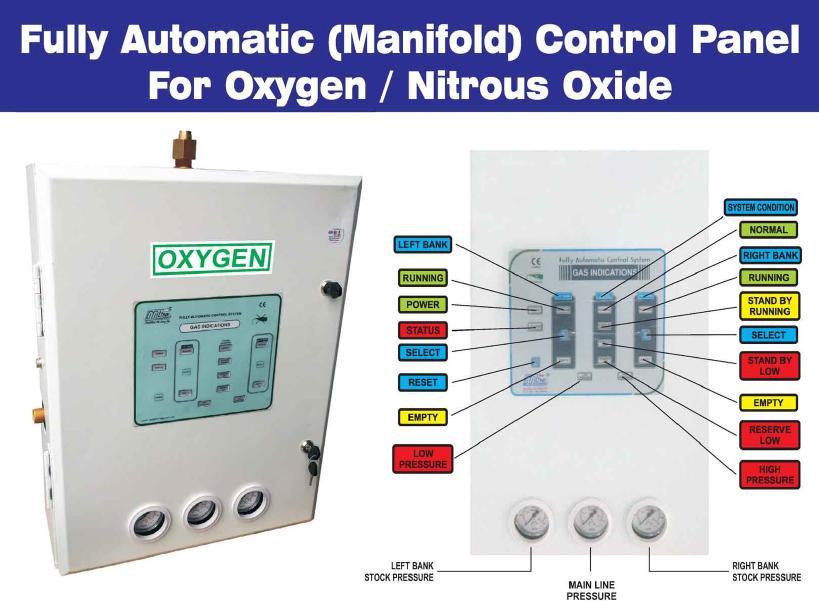

The control panel incorporates twelve large LED. Red / Yellow / Green LED display for the Left Bank, the Right Bank and for Delivery Pressure.
The manifold shall be equipped with a 3/4" outlet shutoff valve. Valve "Parker Hinnifin (ITALY) CE Marked" equipped with internal power supply module 12V-2 Amp. SPM adapter. Low pressure regulator is fully pneumatic which avoid diaphram leakage.
Piping regulators and control switch over components shall be cleaned for Oxygen service.
The manifold shall include pressure relief valves and optional external heaters for N20 and Co2 service (Oxygen manifold shall be equipped with copper pigtails)
