Fine Adjustment Valve With Oxygen Flow Meter

Get a Price/Quote

Product Details:

Air Discharge Up to 10 L/min
Noise Level Low
Condition New
Material Borosilicate Glass Flowmeter Body, Brass Valve
Power Source No Power Required
Dimensions Height: 145 mm x Width: 67 mm x Depth: 45 mm (approx.)
Lubrication Type Non-lubricated
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Fine Adjustment Valve With Oxygen Flow Meter Product Specifications

Noise Level Low
Configuration Single Stage
Lubrication Type Non-lubricated
Driven Method Manual
Power Source No Power Required
Air Discharge Up to 10 L/min
Mute Yes
Dimensions Height: 145 mm x Width: 67 mm x Depth: 45 mm (approx.)
Working Presssure 0.2-0.3 MPa
Material Borosilicate Glass Flowmeter Body, Brass Valve
Air Flow Capacity 0-10 L/min
Condition New

Accuracy 4% of Full Scale
Certified ISO Certified
Connection Type Standard Oxygen Inlet Fitting (BPC type or Optional)
Display Clear Graduated Scale with Floating Ball
Weight Approx. 220 grams
Color Transparent (Tube) with Metallic Body
Applications Hospital Oxygen Therapy, Medical Gas Outlets, Emergency Oxygen Delivery
Flow Adjustment Fine Precision Valve for Accurate Control
Cutting-off Pressure Max 0.6 MPa
Mounting Direct to Oxygen Cylinder or Wall Outlet

Product Description

Product Details:

Usage	Industrial
Flow Rate	Max 250 L/min
Body material	Stainless Steel
Accuracy (Flow rate)	+- 5%
Outlet Connection	Inlet 5/8 inch BSP L/H (Male) 3/8 inch BSP L/H (Male)
Add-ons	Oxygen Regulator
Inlet Pressure	Max 40 Bar
Outlet Pressure	Max 1.5 Bar

Precise Control for Critical Applications

Engineered for use in hospitals and emergency situations, this Fine Adjustment Valve with Oxygen Flow Meter ensures accurate and consistent oxygen delivery. The fine precision valve allows operators to control flow with 4% accuracy across a wide capacity range, supporting patient safety and effective therapy.

Durable Materials and Clear Display

Constructed with a robust metallic body and borosilicate glass tube, the flowmeter is built to withstand frequent handling and provide reliable performance. The clear graduated scale and floating ball make monitoring easy, even in fast-paced medical environments, ensuring clear flow visibility at all times.

Flexible Mounting and Connectivity

This device is compatible with standard oxygen inlet fittings, giving it broad applicability across Indian hospitals and clinics. Direct mounting onto oxygen cylinders or wall outlets maximizes versatility, while manual operation requires no external power, making it suitable for both routine and emergency use.

FAQs of Fine Adjustment Valve With Oxygen Flow Meter:

Q: How do I install the Fine Adjustment Valve with Oxygen Flow Meter?

A: Installation is simplejust connect the standard BPC-type oxygen inlet fitting to your oxygen cylinder or wall outlet, ensuring a secure and leak-free fit. No tools are typically required, and the device can be directly mounted due to its compact size and light weight.

Q: What are the main benefits of using this flow meter for oxygen therapy?

A: This flow meter provides accurate and fine-tuned control of oxygen delivery, which is vital for patient safety during therapy. Its clear graduated scale allows precise monitoring, while its mute operation and low noise level ensure a quiet medical environment.

Q: When should the oxygen flow meter be calibrated or maintained?

A: Regular calibration is recommended as per your facilitys protocol, typically coinciding with scheduled maintenance. The durable materials and non-lubricated design minimize upkeep, but routine checking ensures continued accuracy and safety.

Q: Where can this device be used within a healthcare setting?

A: It is suitable for use in hospitals, clinics, emergency rooms, ambulances, and other medical environments where precise oxygen delivery from cylinders or wall outlets is required.

Q: What is the maximum operating pressure and flow capacity of the device?

A: The device has a working pressure range of 0.2-0.3 MPa and can handle a maximum cutting-off pressure of 0.6 MPa. It accurately delivers air flows ranging from 0 to 10 L/min.

Q: How does the display facilitate accurate oxygen flow adjustment?

A: The transparent borosilicate glass tube features a clear graduated scale and a floating ball, which visibly indicates the current oxygen flow rate. This design allows for precise adjustments directly at the point of use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Flow Metering Device BPC and Humidifier Bottle' category

Analog Oxygen Flow Meter Condition : New Material : Acrylic Body, Brass Fittings Configuration : Inline Mounting Noise Level : < 25 dB Dimensions : 180 mm (L) x 25 mm (Dia) Mute : Yes Air Discharge : Variable, as per Setting Power Source : None (Mechanical) Driven Method : Manual

Send Inquiry

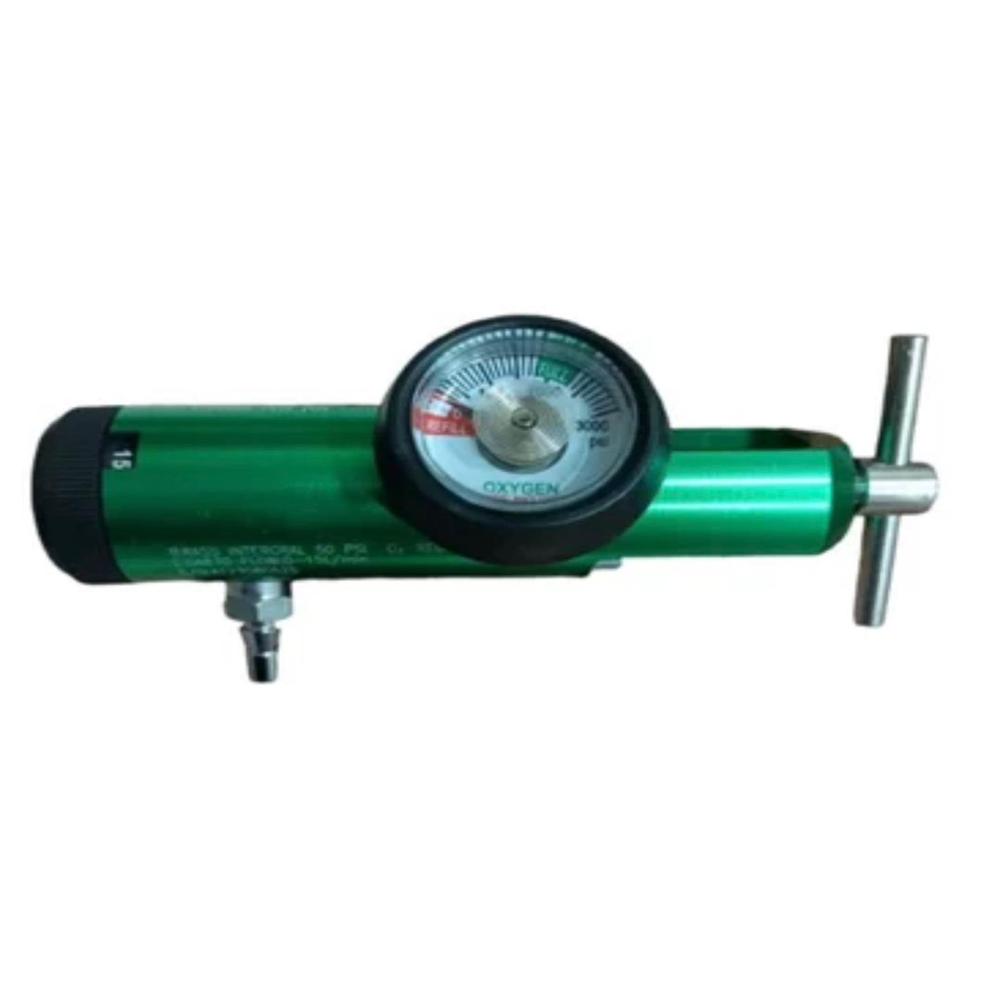

Medical Oxygen Regulator Pin Type Minimum Order Quantity : 1 Condition : New Voltage : 240 Volt (v) Power Source : Electric Warranty : Yes Color : Any Product Type : Medical Oxygen Regulator Pin Type Usage : Industrial
